OLED Module |
|
Your location:Home > Catalog |
|
|
|
Photo |
P/N |
Size(inch) |
Resolution |
Module Size
(mm) |
Active Area
(mm) |
Interface |
Controller |
SPEC |
Type |
Color |

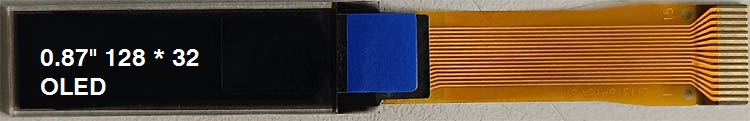

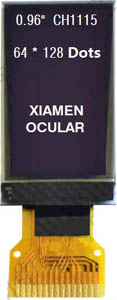

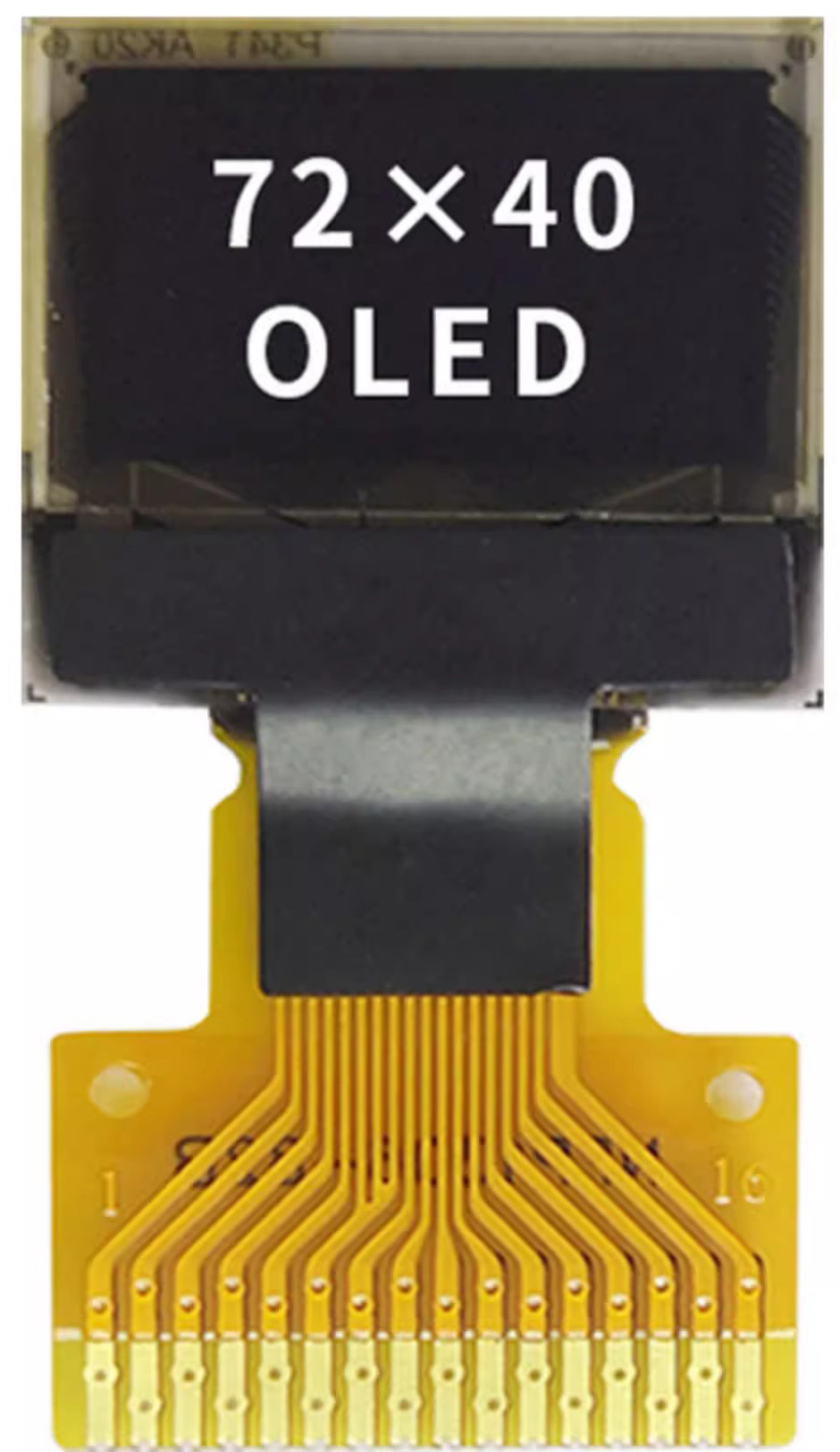

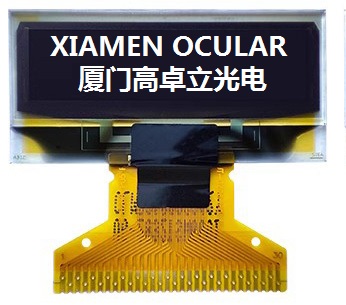

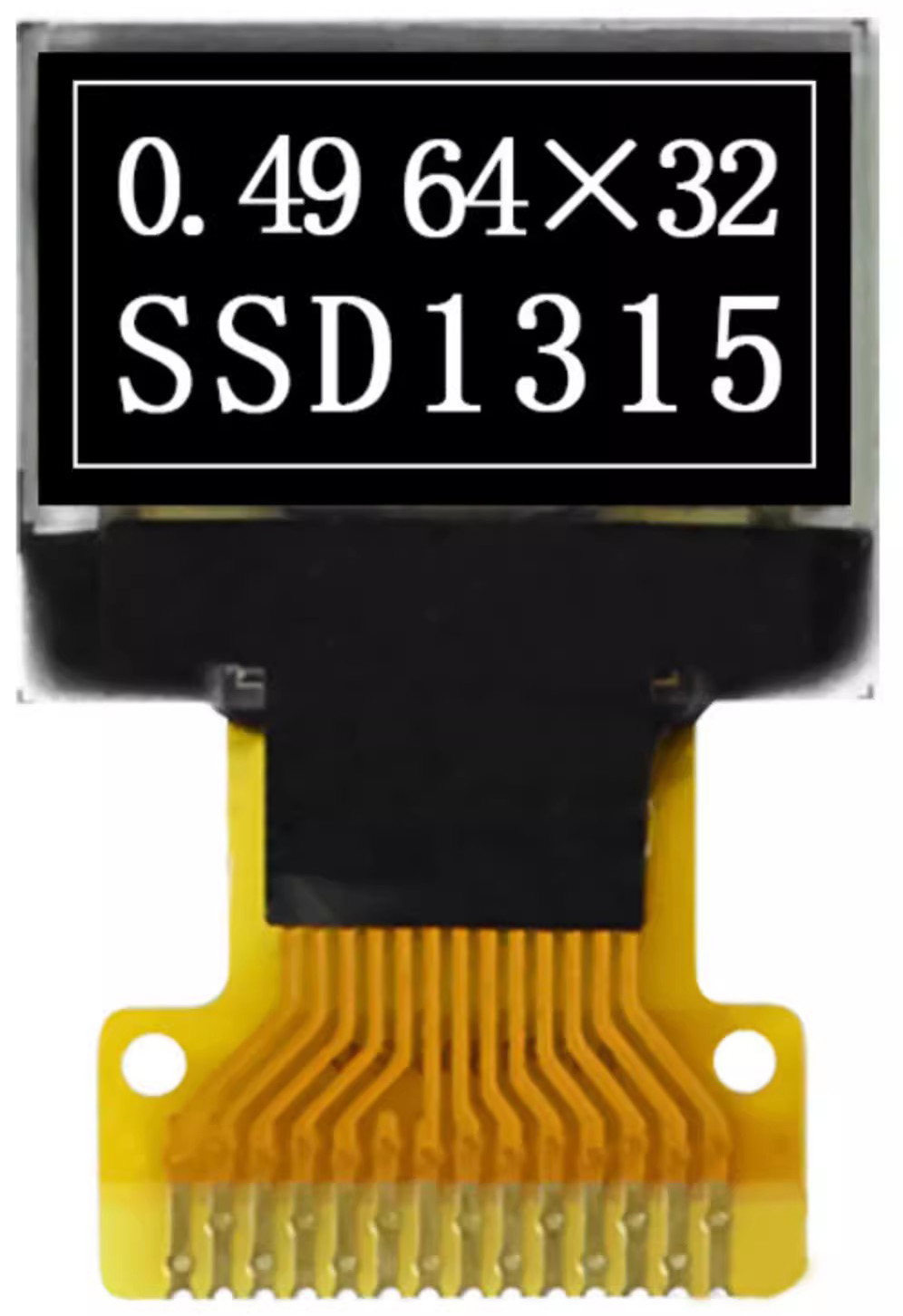

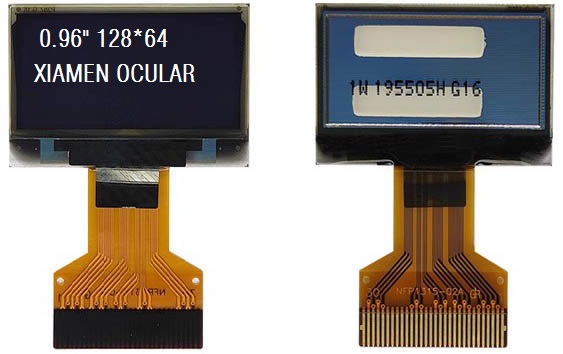

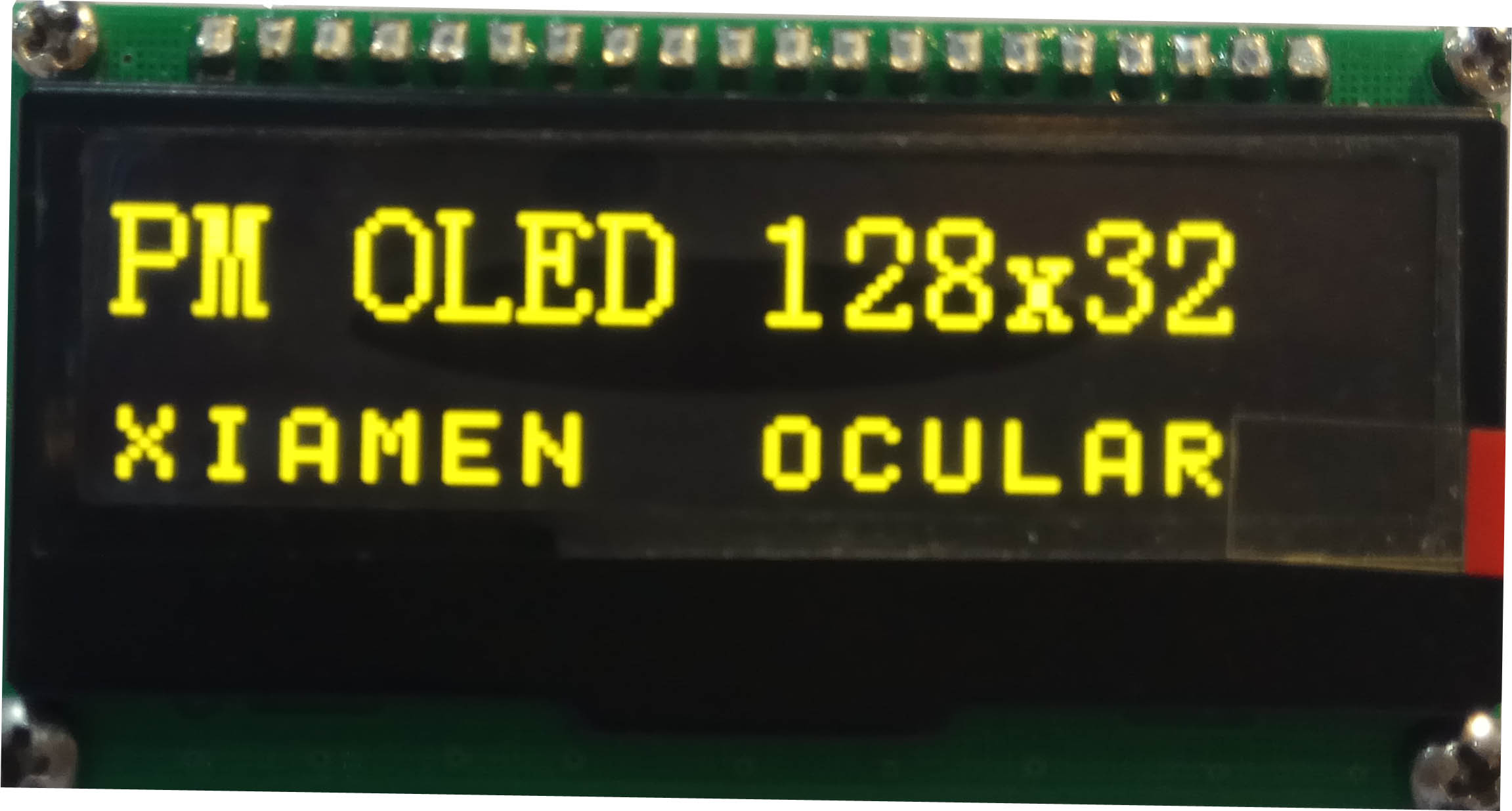

| GDO6432B01-W | 0.49” | 64* 32 | 14.5 *11.6*1.2 | 11.18 * 5.58 | I2C | SSD1315 | | Graphic | White | | GDO7240A01-W | 0.42” | 72 * 40 | 12 *11*1.25 | 9.196 * 5.18 | 3-/4-wire SPI , I2C | SSD1315 | | Graphic | White | | GDO12832H01-W | 0.87" | 128 * 32 | 29 * 8.7 *1.25 | 21.356 * 5.324 | 4-SPI | SSD1316 | | Graphic | White | | GDO12832G01-W | 1.04" | 128 * 32 | 29.8 * 14.5*1.3 | 25.58 *6.38 | 8-bit Parallel,3-/4-wire SPI, I2C | SSD1306 | | Graphic | White | | GDO12832A01-W | 2.23" | 128 * 32 | 62 * 24 * 2 | 55.02 * 13.1 | 8-bit Parallel,3-/4-wire SPI, I2C | SSD1305 | | Graphic | White / Blue / Yellow /Green | | GDOM12832A-Y | 2.23 | 128×32 | 66.50x35.00x9.00 | 55.02x13.10 | 8-bit 68XX/80XX, 4-wire SPI, I2C | SSD1309 | | Graphic | Yellow | | GDO12864K02-W | 0.96” | 128 * 64 | 24.74 * 16.9*1.42 | 21.74 *10.86 | 4-wire SPI , I2C | SSD1315 | | Graphic | White | | GDO12864K01-W | 0.96” | 128 * 64 | 26.7 * 19.26*1.45 | 21.744 *10.864 | 8-bit Parallel,3-/4-wire SPI, I2C | SSD1306 | | Graphic | White / Blue | | GDO64128K02-W | 0.96” | 64* 128 | 13.62 * 27.9 *1.23 | 10.86 *21.74 | 4-wire SPI | CH1115 | | Graphic | White | | GDO64128K01-W | 0.96” | 64* 128 | 14 * 28 *1.22 | 10.86 *21.74 | I2C | SSD1312 | | Graphic | White | | GDO12864A-W | 1.09" | 128 * 64 | 31.96 * 14 *1.22 | 25.58 *10.86 | 4-wire SPI | SSD1312 | | Graphic | White | | GDO12864B02-W | 1.29" | 128 * 64 | 32.42*21.36*1.427 | 29.42 *14.7 | 8-bit Parallel,3-/4-wire SPI, I2C | SSD1315 | | Graphic | White |
|
|
|
|
|
|
